6 x 19 Class General Purpose Wire Rope
Product Information
6×19 Rope Characteristics:
Excellent abrasion resistance; less bending fatigue resistance
Typical Applications:
Dragging and haulage in mines, inclined planes and tramways, sand lines. IWRC shown; fiber core available
Specifications
| 6 x 19 Classification Rope | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter, in. | Nominal Strength,* Tons (Bright or Drawn Galvanized)† | Approximate Wt./Ft., lb. | ||||||||
| EEIP | EIP | IWRC | Fiber Core | |||||||
| CERTEX Cat. Ref. No. | IWRC | CERTEX Cat. Ref. No. | Fiber Core | CERTEX Cat. Ref. No. | IWRC | CERTEX Cat. Ref. No. | Fiber Core | |||
| 1/4 | — | — | CX01-0059 | 3.40 | CX01-0634 | 3.02 | 0.116 | 0.105 | ||
| 5/16 | — | — | CX01-0060 | 5.27 | CX01-0635 | 4.69 | 0.18 | 0.164 | ||
| 3/8 | — | — | CX01-0061 | 7.55 | CX01-0636 | 6.71 | 0.26 | 0.236 | ||
| 7/16 | CX01-0029 | 11.2 | CX01-0044 | 9.90 | CX01-0062 | 10.2 | CX01-0637 | 9.09 | 0.35 | 0.32 |
| 1/2 | CX01-0030 | 14.6 | CX01-0045 | 12.9 | CX01-0063 | 13.3 | CX01-0638 | 11.8 | 0.46 | 0.42 |
| 9/16 | CX01-0031 | 18.5 | CX01-0046 | 16.2 | CX01-0064 | 16.8 | CX01-0639 | 14.9 | 0.59 | 0.53 |
| 5/8 | CX01-0032 | 22.7 | CX01-0047 | 20.0 | CX01-0065 | 20.6 | CX01-0640 | 18.3 | 0.72 | 0.66 |
| 3/4 | CX01-0033 | 32.4 | CX01-0048 | 28.6 | CX01-0066 | 29.4 | CX01-0641 | 26.2 | 1.04 | 0.95 |
| 7/8 | CX01-0034 | 43.8 | CX01-0049 | 39.0 | CX01-0067 | 39.8 | CX01-0642 | 35.4 | 1.42 | 1.29 |
| 1 | CX01-0035 | 56.9 | CX01-0050 | 50.6 | CX01-0068 | 51.7 | CX01-0643 | 46.0 | 1.85 | 1.68 |
| 1 1/8 | CX01-0036 | 71.5 | CX01-0051 | 63.6 | CX01-0069 | 65.0 | CX01-0644 | 57.9 | 2.34 | 2.13 |
| 1 1/4 | CX01-0037 | 87.9 | CX01-0052 | 78.2 | CX01-0070 | 79.9 | CX01-0645 | 71.0 | 2.89 | 2.63 |
| 1 3/8 | CX01-0038 | 106.0 | CX01-0053 | 94.0 | CX01-0071 | 96.0 | CX01-0646 | 85.4 | 3.50 | 3.18 |
| 1 1/2 | CX01-0039 | 125.0 | CX01-0054 | 111.0 | CX01-0072 | 114.0 | CX01-0647 | 101.0 | 4.16 | 3.78 |
| 1 5/8 | CX01-0040 | 146.0 | CX01-0055 | 129.0 | CX01-0073 | 132.0 | CX01-0648 | 118.0 | 4.88 | 4.44 |
| 1 3/4 | CX01-0041 | 169.0 | CX01-0056 | 150.0 | CX01-0074 | 153.0 | CX01-0649 | 136.0 | 5.67 | 5.15 |
| 1 7/8 | CX01-0042 | 192.0 | CX01-0057 | 171.0 | CX01-0075 | 174.0 | CX01-0650 | 155.0 | 6.50 | 5.91 |
| 2 | CX01-0043 | 217.0 | CX01-0058 | 194.0 | CX01-0076 | 198.0 | CX01-0651 | 176.0 | 7.39 | 6.72 |
| 2 1/8 | — | — | CX01-0628 | 221.0 | CX01-0652 | 197.0 | 8.35 | 7.59 | ||
| 2 1/4 | — | — | CX01-0629 | 247.0 | CX01-0653 | 220.0 | 9.36 | 8.51 | ||
| 2 3/8 | — | — | CX01-0630 | 274.0 | CX01-0654 | 244.0 | 10.4 | 9.48 | ||
| 2 1/2 | — | — | CX01-0631 | 302.0 | CX01-0655 | 269.0 | 11.6 | 10.5 | ||
| 2 5/8 | — | — | CX01-0632 | 331.0 | — | 12.8 | 11.6 | |||
| 2 3/4 | — | — | CX01-0633 | 361.0 | — | 14.0 | 12.7 | |||
*Acceptance strength is not less than 2 1/2% below the nominal strengths listed.
†Galvanizing: For class A galvanized wire rope (EIP and IPS grades only), deduct 10% from the nominal strength shown
6 x 19 Classification ropes provide an excellent balance between fatigue and wear resistance. They give excellent service with sheaves and drums of moderate size. 6 x 19 Classification ropes contain 6 strands with 15 through 26 wires per strand, no more than 12 of which are outside wires.
NOT FOR AIRCRAFT USE. (“Aircraft Cable” has become an accepted industry term for small diameter 7×7 and 7×19 construction wire rope intended for industrial and marine application.) Read important warnings and information.
WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!

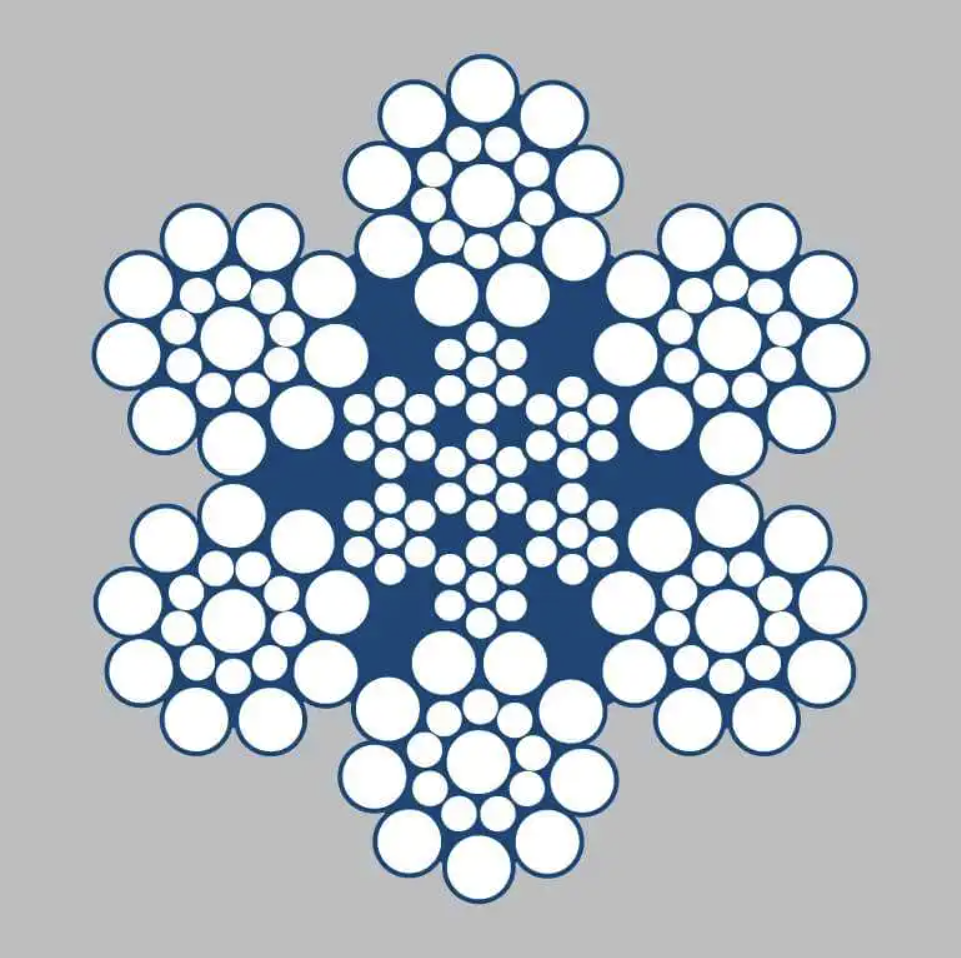

6 x 19 Seale
