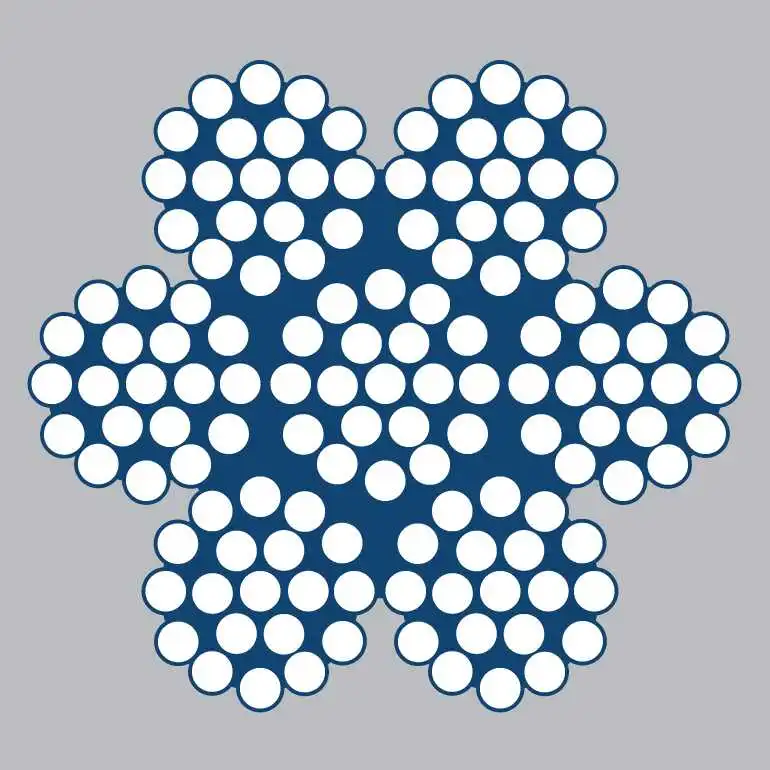

7 x 19 Stainless Steel Wire Rope Type 316
Product Information
Specifications
| CERTEX Cat. Ref. No. | Size | Approx. Weight per 1000 ft. Pounds | Breaking Strength Pounds* |
|---|---|---|---|
| CX01-0185 | 1/8″ | 29 | 1,670 |
| CX01-0186 | 3/16″ | 65 | 3,565 |
| CX01-0187 | 1/4″ | 110 | 5,875 |
| CX01-0188 | 5/16″ | 173 | 8,825 |
| CX01-0189 | 3/8″ | 243 | 11,760 |
*Listed for comparison only. Actual operating loads may vary, but should never exceed 20% of catalog Breaking Strength.
**According to MIL-W-83420D, with exceptions. Meeting Federal Specification RR-W-410D.
Warnings
NOT FOR AIRCRAFT USE. (“Aircraft Cable” has become an accepted industry term for small diameter 7×7 and 7×19 construction wire rope intended for industrial and marine application.) Read important warnings and information preceding wire rope section.
WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!
