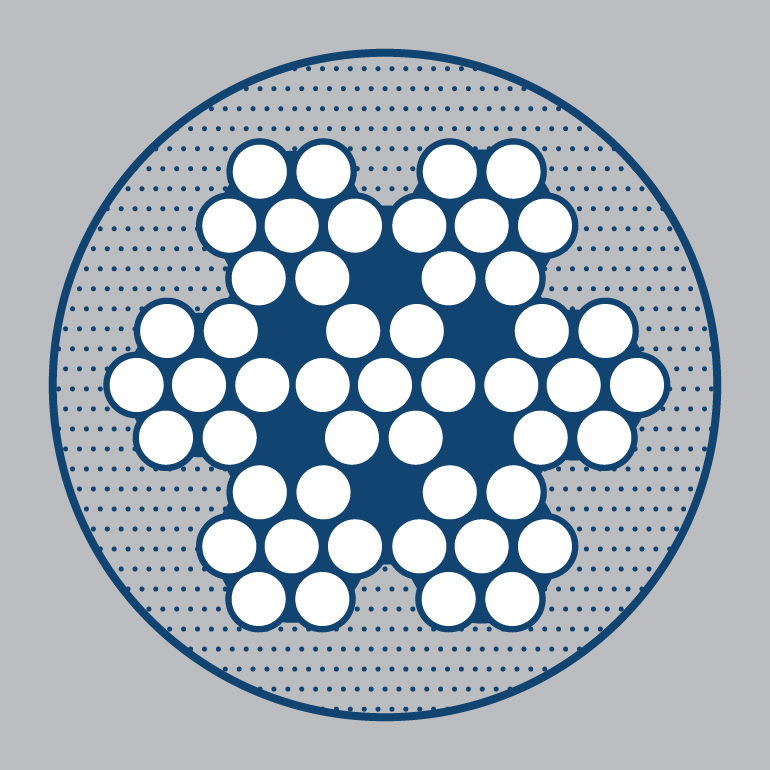

7 x 7 Clear Vinyl Coated Galvanized Cable
Product Information
Classification
View 7 x 19 Clear Vinyl Coated Galvanized Cable
Technical Resources
Specifications
| CERTEX Cat. Ref. No. | Cable Diameter | Coated to | Approx. Weight per 1000 ft. Pounds | Breaking Strength Pounds* | Construction |
|---|---|---|---|---|---|
| CX01-0211 | 1/16″** | 1/8″ | 11.8 | 480 | 7 × 7 |
| CX01-0212 | 3/32″** | 1/8″ | 18.5 | 920 | 7 x 7 |
| CX01-0213 | 3/32″** | 3/16″ | 25.8 | 920 | 7 x 7 |
| CX01-0214 | 1/8″ | 3/16″ | 35.2 | 1,700 | 7 × 7 |
Also available on special order: nylon and vinyl in various colors.
Approx. 3 weeks delivery.
* Listed for comparison only. Actual operating loads may vary, but should never exceed 20% of catalog Breaking Strength.
** Uncoated cable according to MIL-W-83420D, with exceptions.
Uncoated cable meets Federal Specification RR-W-410D.
NOT FOR AIRCRAFT USE. (“Aircraft Cable” has become an accepted industry term for small diameter 7×7 and 7×19 construction wire rope intended for industrial and marine application.) Read important warnings and information here.
When using wire rope clips with plastic coated cable, match clip size to uncoated cable diameter (3/16″ cable coated to 1/4″ takes 3/16″ clip.) Strip plastic coating off cable where clips will be positioned for full holding power.
WARNING: Any warranties, expressed or implied, concerning the use of this product apply only to the nominal strength of new, unused wire rope. All equipment using this product must be properly used and maintained. Wire rope must be properly stored, handled, used and maintained. Most importantly, wire rope must be regularly inspected during use. Damage, abuse or improper maintenance can cause rope failure. Consult the AISI Wire Rope Users Manual, ASME or ANSI Standards, before usage. Wire rope removal criteria are based on the use of steel sheaves. If synthetic sheaves are used, consult the sheave equipment manufacturer. WARNING!
