Aluminum Chokers Size C
Specifications

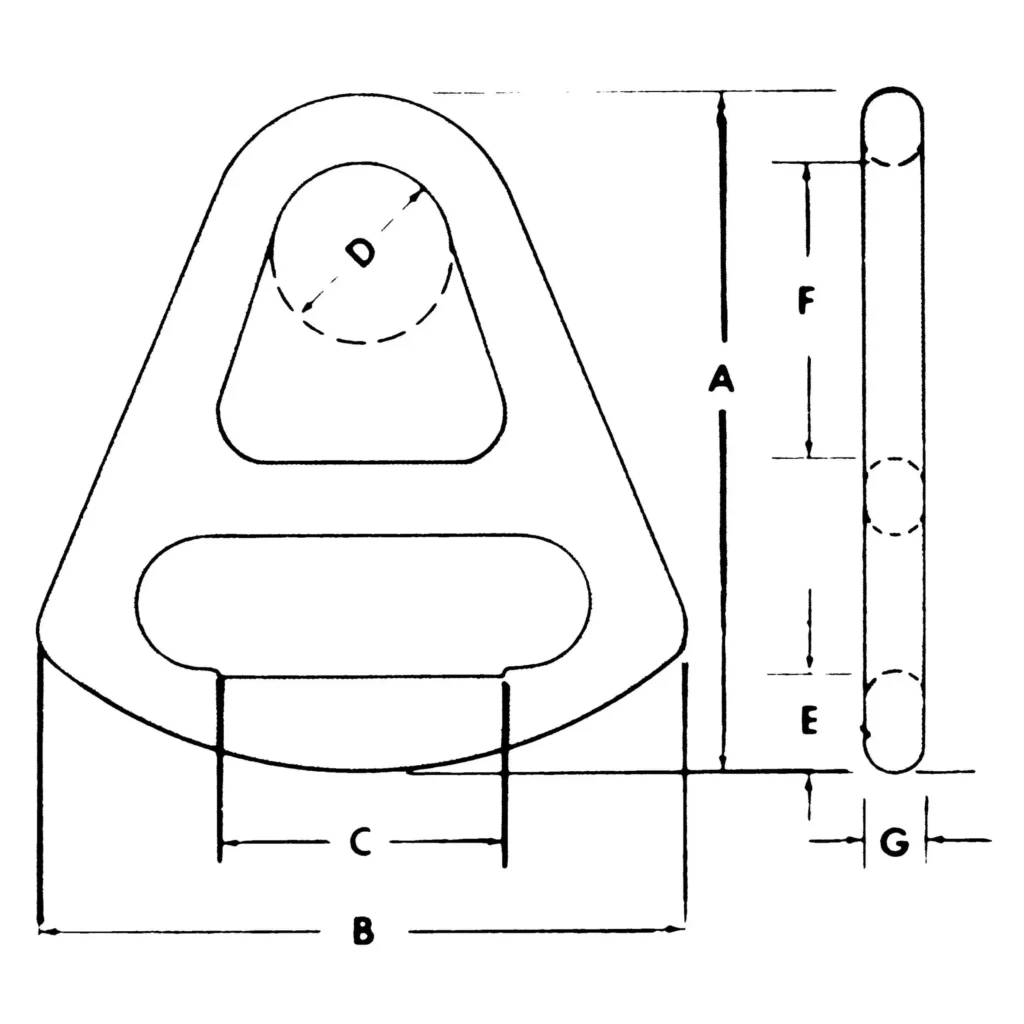

| Size | A | B | C | D | E | F | G | Approx. Weight (lbs.) | Rated Capacity (lbs.) | Minimum Break | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C2 | 6 1/8 | 5 1/4 | 2 1/8 | 1 3/4 | 15/16 | 2 3/8 | 9/16 | .73 | 3,360 | 16,800 | |
| C3 | 7 1/2 | 7 1/8 | 3 1/8 | 2 | 1 1/8 | 3 5/16 | 5/8 | 1.3 | 5,000 | 25,000 | |
| C4 | 8 3/4 | 8 3/4 | 4 1/8 | 2 3/8 | 1 7/16 | 4 | 11/16 | 1.9 | 6,700 | 33,500 | |
| C6 | 11 5/16 | 11 3/4 | 6 1/8 | 3 1/8 | 1 3/4 | 5 1/2 | 15/16 | 5.1 | 9,700 | 48,500 |
