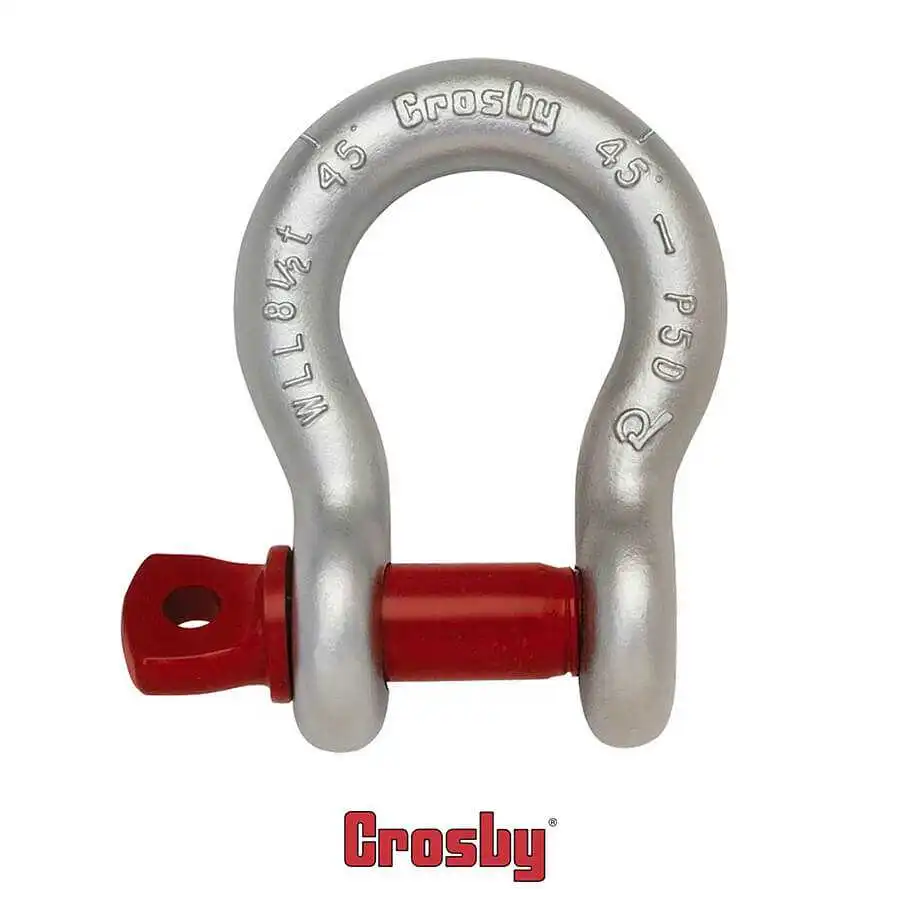

Crosby® Screw Pin Anchor Shackles – G-209 / S-209

Category: Standard Load Rated Shackles
Brand: Crosby®
Type: Shackles

Product Information

Description

  • Meets performance requirements of Grade 6 shackles.
  • Forged, Quenched & Tempered, with alloy pins.
  • Working Load Limit and Grade 6 permanently shown on every shackle.
  • Hot-dip galvanized (G) or self colored (S).
  • Sizes 3/8 inch and below are mechanically galvanized
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles
  • Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certifications. Proof testing and certification available when requested at the time of order, charges will apply.
  • Approved for use at -40° F (-40° C) to 400° F (204° C).

Specifications

Nominal Size (in) Working Load Limit (t) Stock No. Weight Each (lb) Dimensions (in) Tolerance (+ / – in)
G-209 S-209 A B C D E F G H L M P C A
3/16 0.33 1018357 – .06 .38 .25 .88 .19 .60 .56 .98 1.47 .16 1.14 .19 .06 .06
1/4 0.5 1018375 1018384 .10 .47 .31 1.13 .25 .78 .62 1.28 1.84 .19 1.43 .25 .06 .06
5/16 0.75 1018393 1018400 .18 .53 .38 1.21 .31 .84 .75 1.46 2.09 .22 1.71 .31 .06 .06
3/8 1 1018419 1018428 .31 .66 .44 1.45 .38 1.03 .92 1.79 2.50 .25 2.06 .38 .13 .06
7/16 1.5 1018437 1018446 .38 .75 .50 1.69 .44 1.16 1.06 2.04 2.91 .31 2.37 .44 .13 .06
1/2 2 1018455 1018464 .72 .81 .62 1.88 .50 1.31 1.18 2.31 3.28 .38 2.69 .50 .13 .06
5/8 3.25 1018473 1018482 1.37 1.06 .75 2.38 .62 1.69 1.50 2.93 4.19 .44 3.34 .69 .13 .06
3/4 4.75 1018491 1018507 2.35 1.25 .88 2.81 .75 2.00 1.81 3.50 4.97 .50 3.97 .81 .25 .06
7/8 6.5 1018516 1018525 3.62 1.44 1.00 3.31 .88 2.28 2.10 4.04 5.83 .50 4.50 .97 .25 .06
1 8.5 1018534 1018543 5.03 1.69 1.12 3.76 1.00 2.69 2.38 4.69 6.56 .56 5.13 1.06 .25 .06
1-1/8 9.5 1018552 1018561 7.41 1.81 1.25 4.27 1.16 2.91 2.68 5.15 7.47 .63 5.97 1.25 .25 .06
1-1/4 12 1018570 1018589 9.50 2.03 1.38 4.69 1.29 3.26 3.00 5.76 8.26 .69 6.50 1.38 .25 .06
1-3/8 13.5 1018598 1018605 13.53 2.25 1.53 5.22 1.42 3.62 3.31 6.38 9.16 .75 6.93 1.50 .25 .13
1-1/2 17 1018614 1018623 17.20 2.38 1.63 5.76 1.53 3.88 3.62 6.94 10.00 .81 7.43 1.62 .25 .13
1-3/4 25 1018632 1018641 27.78 2.88 2.00 7.00 1.84 5.00 4.19 8.80 12.34 1.00 9.19 2.25 .25 .13
2 35 1018650 1018669 45.00 3.25 2.25 7.75 2.08 5.75 4.81 10.15 13.68 1.13 10.36 2.40 .25 .13
2-1/2 55 1018678 1018687 85.75 4.12 2.75 10.51 2.72 7.25 5.81 12.75 17.92 1.38 13.17 3.13 .25 .25

6:1 Design Factor. Maximum Proof Load is 2 times the Working Load Limit. For Working Load Limit reduction due to side loading applications, see Warnings & Applications.
