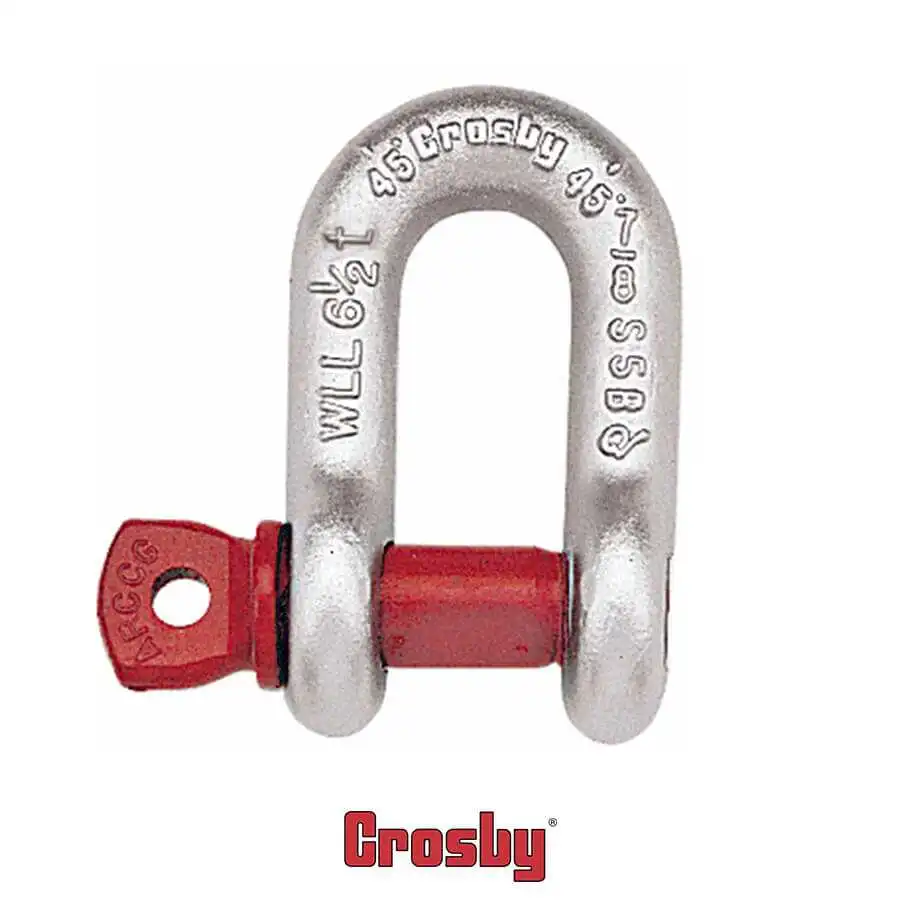

Crosby® Screw Pin Chain Shackles G-210 / S-210
Product Information
Description
G-210 / S-210
- Forged, Quenched & Tempered, with alloy pins
- Working Load Limit and Grade 6 permanently shown on every shackle.
- Hot-dip galvanized (G) or self colored (S).
- Sizes 3/8 inch and below are mechanically galvanized.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
Specifications
G-210 / S-210 Screw Pin Chain Shackles
| Nominal Size (in) | Working Load Limit (t) | Stock No. | Weight Each (lb) | Dimensions (in) | Tolerance (+ / – in) | |||||||||||
| G-210 | S-210 | A | B | C | D | E | F | G | K | L | M | G | A | |||
| 1/4 | 0.5 | 1019150 | 1019169 | .11 | .47 | .31 | .25 | .25 | .97 | .62 | .97 | 1.59 | .19 | 1.43 | .06 | .06 |
| 5/16 | 0.75 | 1019178 | 1019187 | .17 | .53 | .38 | .31 | .31 | 1.15 | .75 | 1.07 | 1.91 | .22 | 1.71 | .06 | .06 |
| 3/8 | 1 | 1019196 | 1019203 | .28 | .66 | .44 | .38 | .38 | 1.42 | .92 | 1.28 | 2.31 | .25 | 2.02 | .13 | .06 |
| 7/16 | 1.5 | 1019212 | 1019221 | .43 | .75 | .50 | .44 | .44 | 1.63 | 1.06 | 1.48 | 2.67 | .31 | 2.37 | .13 | .06 |
| 1/2 | 2 | 1019230 | 1019249 | .59 | .81 | .63 | .50 | .50 | 1.81 | 1.18 | 1.66 | 3.03 | .38 | 2.69 | .13 | .06 |
| 5/8 | 3.25 | 1019258 | 1019267 | 1.25 | 1.06 | .75 | .63 | .63 | 2.32 | 1.50 | 2.04 | 3.76 | .44 | 3.34 | .13 | .06 |
| 3/4 | 4.75 | 1019276 | 1019285 | 2.63 | 1.25 | .88 | .81 | .75 | 2.75 | 1.81 | 2.40 | 4.53 | .50 | 3.97 | .25 | .06 |
| 7/8 | 6.5 | 1019294 | 1019301 | 3.16 | 1.44 | 1.00 | .97 | .88 | 3.20 | 2.10 | 2.86 | 5.33 | .50 | 4.50 | .25 | .06 |
| 1 | 8.5 | 1019310 | 1019329 | 4.75 | 1.69 | 1.13 | 1.00 | 1.00 | 3.69 | 2.38 | 3.24 | 5.94 | .56 | 5.13 | .25 | .06 |
| 1-1/8 | 9.5 | 1019338 | 1019347 | 6.75 | 1.81 | 1.25 | 1.25 | 1.13 | 4.07 | 2.69 | 3.61 | 6.78 | .63 | 5.71 | .25 | .06 |
| 1-1/4 | 12 | 1019356 | 1019365 | 9.06 | 2.03 | 1.38 | 1.38 | 1.25 | 4.53 | 3.00 | 3.97 | 7.50 | .69 | 6.25 | .25 | .13 |
| 1-3/8 | 13.5 | 1019374 | 1019383 | 11.63 | 2.25 | 1.50 | 1.50 | 1.38 | 5.01 | 3.31 | 4.43 | 8.28 | .75 | 6.53 | .25 | .13 |
| 1-1/2 | 17 | 1019392 | 1019409 | 15.95 | 2.38 | 1.63 | 1.62 | 1.50 | 5.38 | 3.62 | 4.87 | 9.05 | .81 | 7.33 | .25 | .13 |
| 1-3/4 | 25 | 1019418 | 1019427 | 26.75 | 2.88 | 2.00 | 2.12 | 1.75 | 6.38 | 4.19 | 5.78 | 10.97 | 1.00 | 9.06 | .25 | .13 |
| 2 | 35 | 1019436 | 1019445 | 42.31 | 3.25 | 2.25 | 2.36 | 2.10 | 7.25 | 5.00 | 6.77 | 12.74 | 1.13 | 10.35 | .25 | .13 |
| 2-1/2 | 55 | 1019454 | 1019463 | 71.75 | 4.12 | 2.75 | 2.63 | 2.63 | 9.38 | 5.68 | 8.07 | 14.85 | 1.38 | 13.00 | .25 | .25 |
6:1 Design Factor. Maximum Proof Load is 2 times the Working Load Limit. For Working Load Limit reduction due to side loading applications, see Warnings & Applications.
G-210 / S-210
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certifications. Proof testing and certification available when requested at the time of order, charges will apply.
- Approved for use at -40° F (-40° C) to 400° F (204° C).
- All 209 and 210 shackles can meet charpy requirements of 31 ft-lb (42 Joules) avg. at -4° F (-20° C) upon special request.
- Meets or exceeds all requirements of ASME B30.26.
- Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances available. Certificates available when requested at time of order and may include additional charges.
- G-210 Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C271G, Type IVB, Grade A, Class 2, except for those provisions required of the contractor
- Look for the Red Pin®… the mark of genuine Crosby quality.
