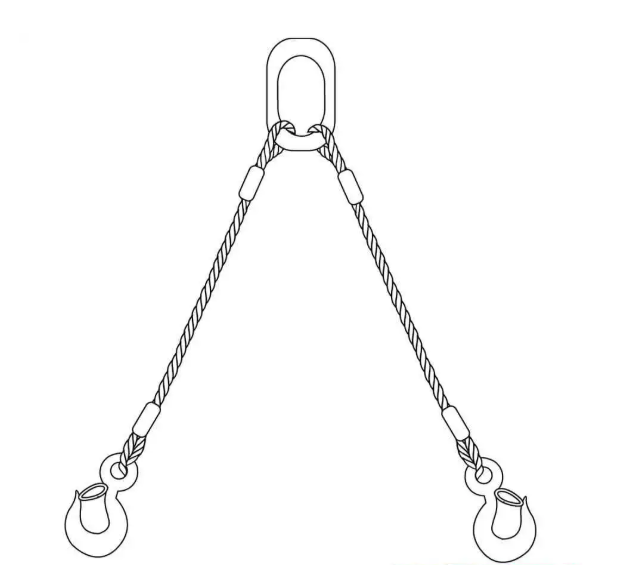

Double-Leg Bridle Wire Rope Slings

Category: Double-Leg Bridle Wire Rope Slings
Type: Double Leg Wire Rope Slings

Product Information

Contact us to customize your Wire Rope Sling.

Sling Angles at 30˚, 45˚, and 60˚.

Specifications

ROPE DIAMETER (INCHES) VERTICAL
2 LEG BRIDLE
30° 45° 60°
1/4 1.3 0.65 0.91 1.1
5/16 2.0 1.0 1.4 1.7
3/8 2.9 1.4 2.0 2.5
7/16 3.9 1.9 2.7 3.4
1/2 5.1 2.5 3.6 4.4
9/16 6.4 3.2 5.5 6.8
5/8 7.8 3.9 5.5 6.8
3/4 11 5.6 7.9 9.7
7/8 15 7.6 11 13
1 20 9.8 14 17
1 1/8 24 12 17 21
1 1/4 30 15 21 26
1 3/8 36 18 25 31
1 1/2 42 21 30 37
1 5/8 49 24 35 42
1 3/4 57 28 40 49
1 7/8 64 32 46 56
2 73 37 52 63

RATED CAPACITIES BASKET HITCH BASED ON D/d RATIO OF 25
RATED CAPACITIES BASED ON PIN DIAMETER NO LARGER THAN NATURAL EYE WIDTH OR LESS THAN THE NOMINAL SLING DIAMETER
RATED CAPACITIES BASED ON DESIGN FACTOR OF 5
HORIZONTAL SLING ANGLES LESS THAN 30 DEGREES SHALL NOT BE USED
Rated Capacities shown apply only to 6×19 and 6×37 classification wire rope.
