The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links,
with intermediate struts that can be bolted into the assembly to achieve dierent spans.
MOD 110 has an assembled span ranging from 6ft to 59ft in 1ft increments..

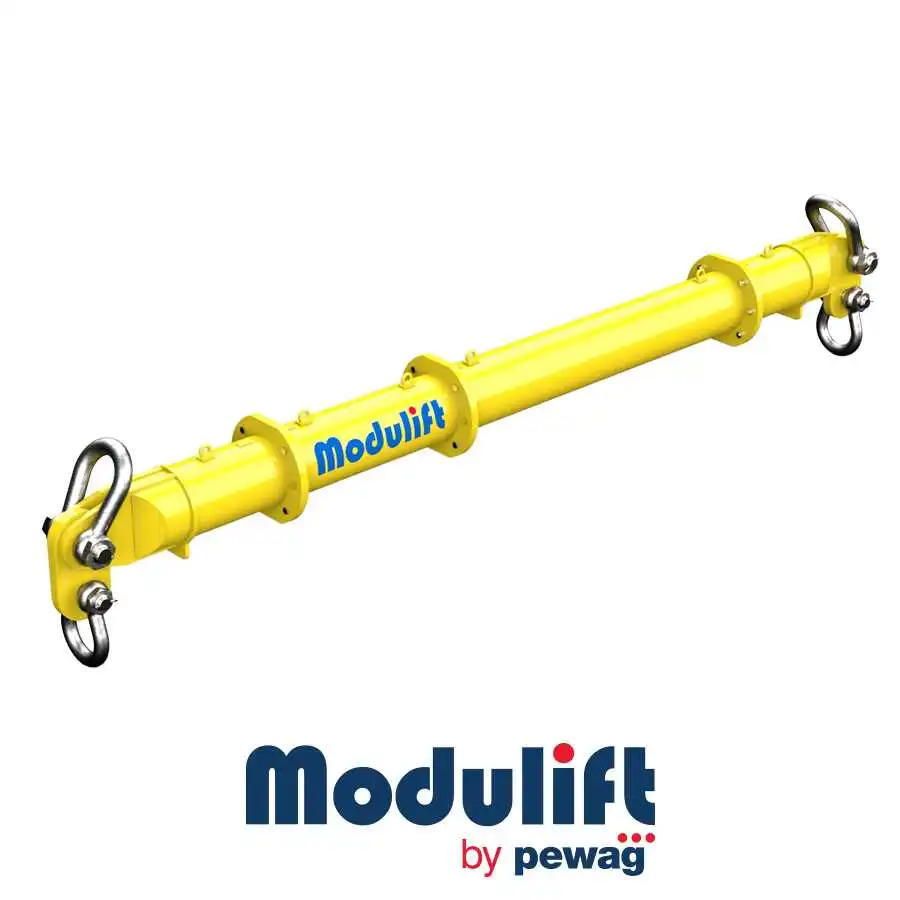

Modulift MOD 110 Spreader Beam
Product Information
Description
Specifications
- Rated at 110 tonnes SWL at 37ft span
(60° BSA). See Load Table for SWL at longer spans. - ‘Base to Sling’ angle, α, 45 degrees or more
- End Units & Drop Links are rated at 55 tonnes WLL each (110 tonnes combined capacity).
- Bolt tightening torque: 110 Pound-Foot. Spanner size required: 30mm.
- Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.
● Personnel using this system should be suitably trained, competent and have a clear
understanding of Safe Slinging procedures.
● The use of Modulift equipment must be in accordance with the procedures laid down in
‘ASME B30.20 – 2013’.
● Never exceed stated SWL – Adhere to SWL in Table 2 for particular sling angle used.
● The top sling length is critical to the safe use of the spreader – Adhere to Table 2.
● Ensure Drop Links hang down, and smaller shackles are connected to bottom hole of Drop Link.
● Do not under any circumstances hang load(s) from the tube or flanges – the spreader is designed for axial compression, not bending.
