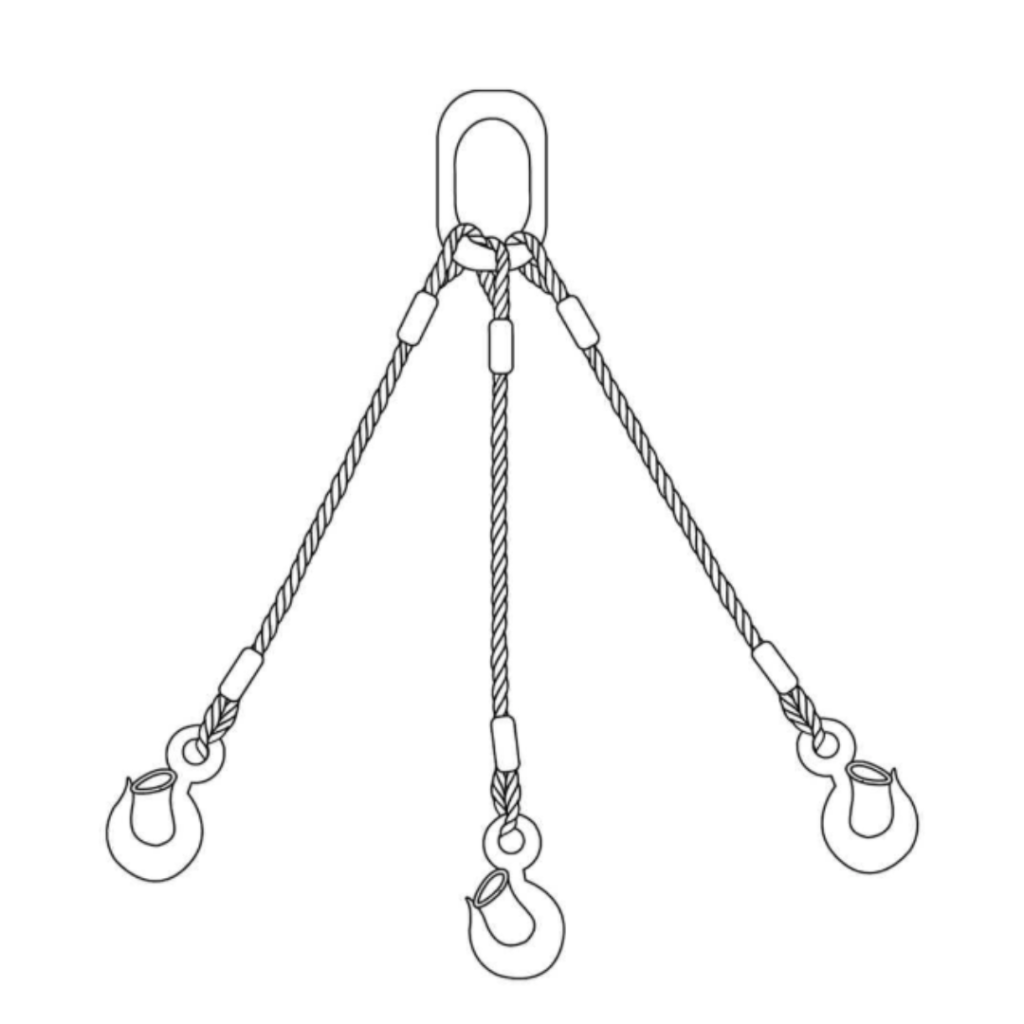

Triple-Leg Bridle Wire Rope Slings

Category: Triple-Leg Bridle Wire Rope Slings
Type: Wire Rope Slings

Product Information

Contact us to customize your Wire Rope Sling.

Specifications

ROPE DIAMETER (INCHES) VERTICAL
3 LEG BRIDLE
30° 45° 60°
1/4 1.9 0.97 1.4 1.7
5/16 3.0 1.5 2.1 2.6
3/8 4.3 2.2 3.0 3.7
7/13 2.8 2.9 4.1 5.0
1/2 7.6 3.8 5.4 6.6
9/16 9.6 4.8 6.8 8.3
5/8 12 5.9 8.3 10
3/4 17 8.4 12 15
7/8 23 11 16 20
1 29 15 21 26
1 1/8 36 18 26 31
1 1/4 44 22 31 38
1 3/8 53 27 38 46
1 1/2 63 32 45 55
1 5/8 73 37 52 63
1 3/4 85 42 62 74
1 7/8 97 48 68 84
2 110 55 78 95
2 1/8 119 60 84 103
2 1/4 133 67 94 116
2 3/8 148 74 105 128
2 1/2 163 82 115 141
2 5/8 179 89 126 155
2 3/4 195 97 138 169
2 7/8 212 106 150 183
3 230 155 162 199
3 1/8 247 124 175 214
3 1/4 266 133 188 230
3 3/8 286 143 202 247
3 1/2 305 152 215 264

RATED CAPACITIES BASKET HITCH BASED ON D/d RATIO OF 25
RATED CAPACITIES BASED ON PIN DIAMETER NO LARGER THAN NATURAL EYE WIDTH OR LESS THAN THE NOMINAL SLING DIAMETER
RATED CAPACITIES BASED ON DESIGN FACTOR OF 5
HORIZONTAL SLING ANGLES LESS THAN 30 DEGREES SHALL NOT BE USED
Rated Capacities shown apply only to 6×19 and 6×37 classification wire rope.
