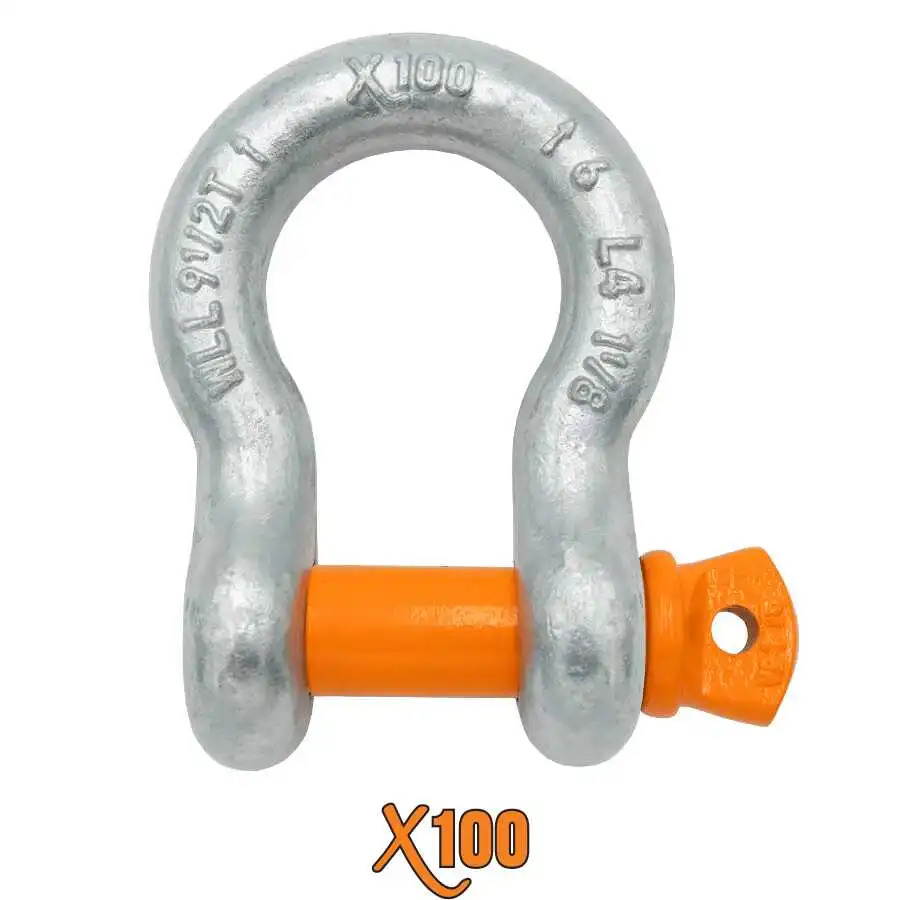

X100® Carbon Steel Screw Pin Anchor Shackles
Product Information
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Carbon Steel Bow with Alloy Oversized Pin
- Designed & Suitable for Overhead Lifting
- Drop Forged
- Quenched & Tempered
- Pin is Powder Coated X100 BLAZE ORANGE
- Breaking Strength to Working Load Limit Ratio 6:1

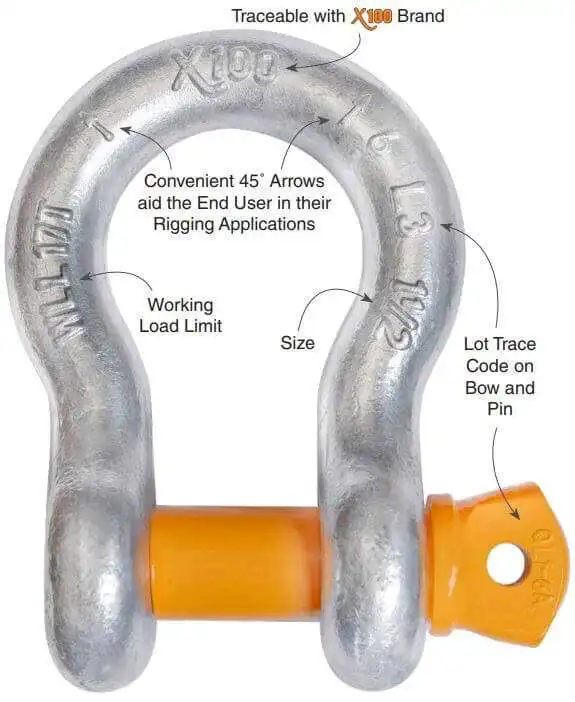

- Embossed Markings: X100 Brand, Size, Working Load Limit, Lot Trace Code
Specifications
| SIZE (IN) | PIN DIA (IN) | WORKING LOAD LIMIT (TON) | WEIGHT/PIECE (LBS) | |
|---|---|---|---|---|
| 3/16 | 1/4 | 0.33 | 0.05 | |
| 1/4 | 5/16 | 0.50 | 0.12 | |
| 5/16 | 3/8 | 0.75 | 0.18 | |
| 3/8 | 7/16 | 1.00 | 0.31 | |
| 7/16 | 1/2 | 1.50 | 0.49 | |
| 1/2 | 5/8 | 2.00 | 0.74 | |
| 5/8 | 3/4 | 3.25 | 1.44 | |
| 3/4 | 7/8 | 4.75 | 2.16 | |
| 7/8 | 1 | 6.50 | 3.37 | |
| 1 | 1-1/8 | 8.50 | 5.30 | |
| 1-1/8 | 1-1/4 | 9.50 | 7.00 | |
| 1-1/4 | 1-3/8 | 12.00 | 9.60 | |
| 1-3/8 | 1-1/2 | 13.50 | 12.60 | |
| 1-1/2 | 1-3/4 | 17.00 | 17.35 | |
| 1-3/4 | 2 | 25.00 | 27.80 | |
| 2 | 2-1/4 | 35.00 | 43.00 | |
| 2-1/2 | 2-3/4 | 55.00 | 83.00 |
X100 Screw Pin Anchor Shackles are suitable for overhead lifting. According to Federal Specification RR-C-271G, Type IVA, Grade A, Class 2. Meets ASME B30.26 requirements. Ultimate Load is 6X the Working Load Limit.
| DIMENSIONS (IN) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | |
| .38 | .25 | .88 | .19 | .60 | .56 | .98 | 1.47 | .16 | 1.14 | .19 | |
| .47 | .31 | 1.13 | .25 | .78 | .61 | 1.28 | 1.84 | .19 | 1.43 | .25 | |
| .53 | .38 | 1.22 | .31 | .84 | .75 | 1.47 | 2.09 | .22 | 1.71 | .31 | |
| .66 | .44 | 1.44 | .38 | 1.03 | .91 | 1.78 | 2.49 | .25 | 2.02 | .38 | |
| .75 | .50 | 1.69 | .44 | 1.16 | 1.06 | 2.03 | 2.91 | .31 | 2.37 | .44 | |
| .81 | .63 | 1.88 | .50 | 1.31 | 1.19 | 2.31 | 3.28 | .38 | 2.69 | .50 | |
| 1.06 | .75 | 2.38 | .63 | 1.69 | 1.50 | 2.94 | 4.19 | .44 | 3.34 | .69 | |
| 1.25 | .88 | 2.81 | .75 | 2.00 | 1.81 | 3.50 | 4.97 | .50 | 3.97 | .81 | |
| 1.44 | 1.00 | 3.31 | .88 | 2.28 | 2.09 | 4.03 | 5.83 | .50 | 4.50 | .97 | |
| 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 4.69 | 6.56 | .56 | 5.13 | 1.06 | |
| 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | .63 | 5.71 | 1.25 | |
| 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3.00 | 5.75 | 8.25 | .69 | 6.25 | 1.38 | |
| 2.25 | 1.50 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | .75 | 6.83 | 1.50 | |
| 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10.00 | .81 | 7.33 | 1.62 | |
| 2.88 | 2.00 | 7.00 | 1.84 | 5.00 | 4.19 | 8.86 | 12.34 | 1.00 | 9.06 | 2.25 | |
| 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.35 | 2.40 | |
| 4.13 | 2.75 | 10.50 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13.00 | 3.13 | |
